Ɲɛda dɔnni masin

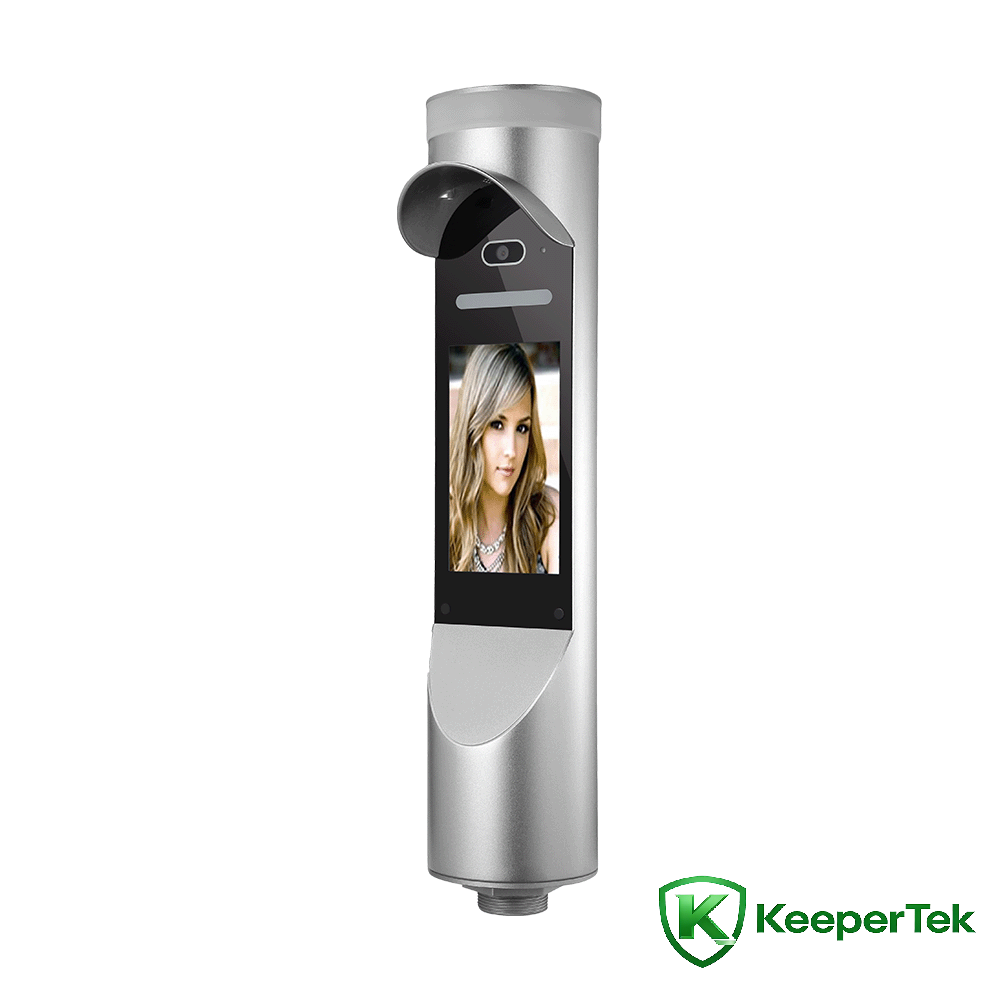

7silinda mɔgɔ Ɲɛda Dɔnniya bɛɛ-ka-masin KT- FR014

Fɛnɲɛnɛmako paramɛtiriw

Baarakɛminɛn: ARM Cortex-A7 min bɛ ni fɛn fila ye, @1.0GHz

Baarakɛminɛn: Linux baarakɛminɛn

A maracogo: 8GB EMMC

Kamera: Binocular, 2,1 miliyɔn pixel nafama, 1920*1080

Jalabɔlan: 1/2.8" Progressive Scan CMOS

Lens: 6mm ye

Kumafɔla: standard, kan fɔcogo kɔnɔkow bɛ se ka kɛ ka kɛɲɛ ni mɔgɔw sago ye

Dɔnniya janya: 1,2 ~ 2,2 mɛtɛrɛ, angle ladilan

Dɔnniya yɔrɔjan: mɛtɛrɛ 0,3 ~ 1,5, a bɛ Yɛlɛma ka Kɛɲɛ ni lensɛri ye

Ɲɛda fan: degere 30 numan fɛ ni numan fɛ, degere 30 sanfɛ ni duguma

A dɔnni waati: a tɛ sekɔndi 0,5 ma

Ɲɛda seko: 20 000

A maracogo: 60 000 ye ja talenw sɛbɛn

Kumaɲɔgɔnya siratigɛ: RJ45 adaptive Ethernet port (a bɛ se ka WiFi customized dɛmɛ)

Kunnafoni-falen-falen-yɔrɔ: switching bɔli

Wiegand interface: 1 Wiegand interface donna, 1 Wiegand interface bɔli

USB-yɔrɔ: USB-yɔrɔ 1 i n’a fɔ minɛn

Kumaɲɔgɔnya siratigɛ: 1 RS485 kumaɲɔgɔnya siratigɛ

Kamera: Kamera ɲɛkisɛ fila, yeelen yelen, a bɛ farikolo ɲɛnamaw dɔnni dɛmɛ

Pixel nafamaw: Pixel nafama miliyɔn 2,1, 1920*1080

Yeelen hakɛ fitinin : kulɛri 0,01Lux @F1.2 (ICR); nɛrɛ ni nɛrɛ 0,001Lux @F1.2 (ICR) .

Siginiden ni mankan hakɛ: ≥50db (AGC OFF) .

Écran ka ɲɛfɔli: 480*800

Baarakɛyɔrɔ funteni: -30°C - +60℃

Baarakɛ nɛnɛ: 0~90% nɛnɛ hakɛ, nɛnɛ tɛ

Minɛnw fanga: 10W(MAX)

Kɔgɔji fiyɛta hakɛ : Rp6 walima ka tɛmɛ o kan

Antistatique : contact ±6KV, fiɲɛ ±8KV

Kuranko: DC12V/2A

Vis dingɛ cɛmancɛ: 47mm

Yuruku-yuruku kɛlɛli hakɛ: IK06

Lakanali hakɛ: IP65

Écran specifications: 7-inch high-definition RGB jiralan

Minɛnw hakɛ: 519 (janya) * 118 (bonya) * 118 (janya) milimɛtɛrɛ

Suguya

Aw bɛ farikolo ɲɛnamaw dɔnni dɛmɛ ni ɲɛkisɛ fila ye

A bɛ ɲɛda nɔfɛtaama ni mɔgɔw jirali dɛmɛ minnu bɛ taa kɔkanna yeelen barikamaw la

Ɲɛda dɔnni algorisimu kɛrɛnkɛrɛnnen, ɲɛda dɔnni tigitigi, ɲɛda dɔnni waati ka dɔgɔ ni 0,5s ye

CPU min bɛ so kɔnɔ, o bɛ don a kɔnɔ

Ni baara kɛra ni LINUX baarakɛminɛn ye, o sitɛmu bɛ sabati

Boli waati kɔrɔ ye dɛsɛw ni ɲɔgɔn cɛ MTBF>50000h

A bɛ dɛmɛ don fo 20.000+ ɲɛda sumalen gafemarayɔrɔw ani 60.000 dɔnni sɛbɛnw

Interface protocoles nafamaw, minnu bɛ TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocoles dɛmɛ Windows/Linux ani platform wɛrɛw kɔnɔ

Baarakɛyɔrɔ funteni: -30°C-60℃

IP66 ji ni buguri tɛ don a la

Dɛmɛ don yeelen sɛgɛsɛgɛli la

Fɛnɲɛnɛmafagalanw (I/O, WG26, WG34, RJ45, USB, RS485)

7-inch high-definition RGB display, a tɛ kɛ ni nɔgɔ ye walima ka mɛn jaw la
