Ɲɛda dɔnni masin

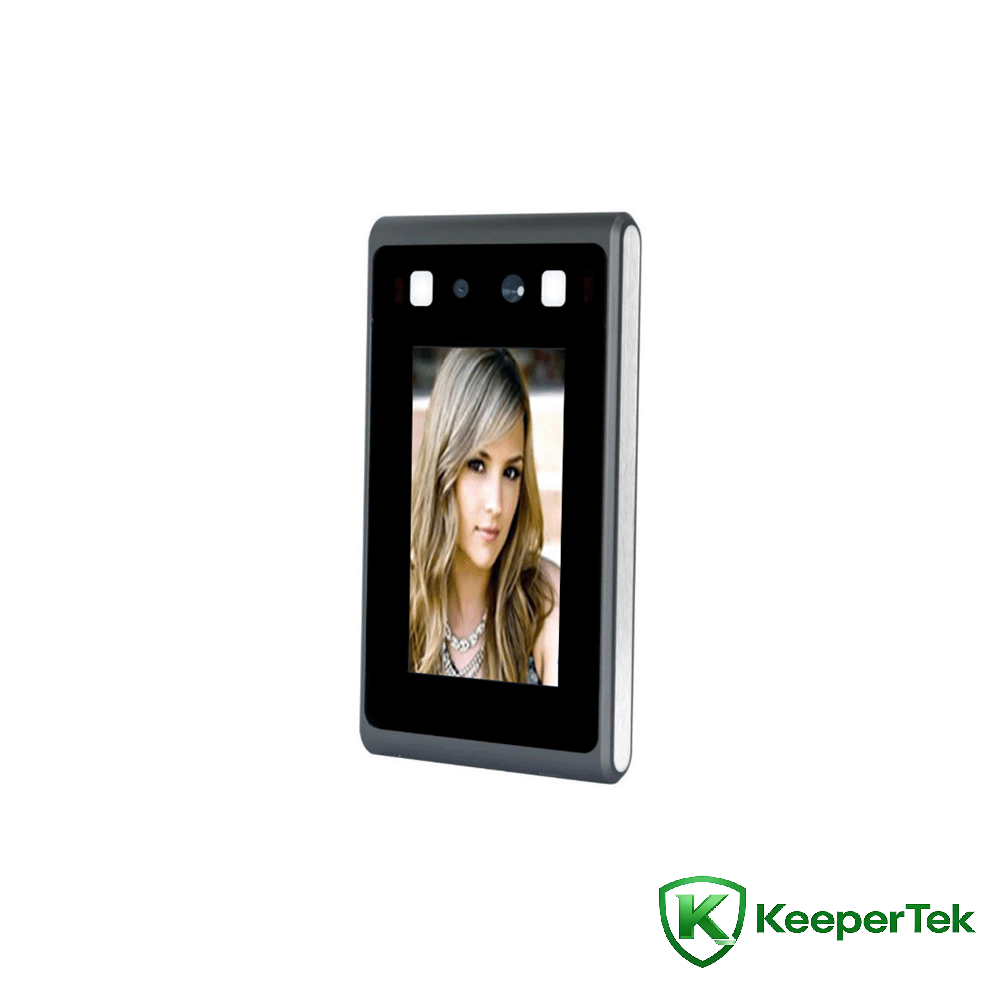

4.3inch jama Ɲɛda ka yira bɔrɔsi Karti intégré mansin KT- FR002

Fɛnɲɛnɛmako paramɛtiriw

Baarakɛminɛn: ARM Cortex-A7 min bɛ ni fila ye, @1.0GHz

Baarakɛminɛn: Linux baarakɛminɛn

Ladonni: Dɛmɛ don TF karti marali la (a bɛ se ka kɛ i yɛrɛ sago ye) .

Kamera: Binocular, 2,1 miliyɔn pixel nafama, 1920*1080

Jalabɔminɛn: 1/2.8" Progressive Scan CMOS

Lensɛri: 4,5mm

Karti sɛgɛsɛgɛli modulu : a bɛ se ka kɛ, 13,56MHz, ID karti seriyali nimɔrɔ, Mifare, NFC

Wifi module: IEEE 802.11b/g/n standard, a bɛ 2.4GHz frequency band dɛmɛ, teliya hakɛ 1Mbps-150Mbps

Écran toucher: dɛmɛ, capacitive multi-touch écran

Kumafɔla: standard, kan fɔcogo kɔnɔkow bɛ se ka kɛ ka kɛɲɛ ni mɔgɔw sago ye

Dɔnniya janya: 1,2 ~ 2,2 mɛtɛrɛ, angle ladilan

Dɔnniya yɔrɔjan: 0,3 ~ 1,5 mɛtɛrɛ

Ɲɛda fan: degere 30 numan fɛ ni numan fɛ, degere 30 sanfɛ ni duguma

A dɔnni waati: a tɛ sekɔndi 0,5 ma

A maracogo: 60 000 ye ja talenw sɛbɛn

Ɲɛda seko: 20 000

Seko ni dɔnko doncogo: DC12V/2A

Réseau interface: 1 RJ45 10M/100M adaptatif Etɛrinɛti port

Wiegand ka ɲɔgɔndan: 1 Wiegand ɲɔgɔndan bɔli, 1 Wiegand ɲɔgɔndan doncogo

Alarm interface: tasuma alarma donna 1, alarma bɔli 1

Da sensor interface: 1 da sensor interface donna

Da wulicogo: 1 da wulicogo donna

Da la bεnkan: 1 da bεε bεε bε bεn

Da tugu ɲɔgɔn na: 1 da tugu ɲɔgɔn na bɔli

Kumaɲɔgɔnya siratigɛ: 1 RS485 kumaɲɔgɔnya siratigɛ

Kamera: Kamera ɲɛ fila, ɲɛkisɛ bɛɛ, yeelen yelen ani infrarouge kɛrɛfɛ, o bɛ farikolo ɲɛnamaw dɔnni dɛmɛ

Pixel nafamaw: Pixel nafama miliyɔn 2,1, 1920*1080

Yeelen hakɛ fitinin : kulɛri 0,01Lux @F1.2 (ICR); nɛrɛ ni nɛrɛ 0,001Lux @F1.2 (ICR) .

Siginiden ni mankan hakɛ: ≥50db (AGC OFF) .

Écran ka ɲɛfɔli: 480*272

Baarakɛyɔrɔ funteni: -20°C - +55℃

Baarakɛ nɛnɛ: 0~90% nɛnɛ hakɛ, nɛnɛ tɛ

Minɛnw fanga: 10W (MAX) .

Kɔgɔji fiyɛta hakɛ : Rp6 walima ka tɛmɛ o kan

Antistatique : contact ±4KV, fiɲɛ ±8KV

Kuranko: DC12V/2A

Lakanali hakɛ: IP42

Écran specifications: 4,3 inch capacitive multi-touch écran

Minɛnw hakɛ: 160 (janya) * 88 (bonya) * 17 (kɔnɔna) mm

Suguya

Aw bɛ farikolo ɲɛnamaw dɔnni dɛmɛ ni ɲɛkisɛ fila ye

A bɛ ɲɛda nɔfɛtaama ni mɔgɔw jirali dɛmɛ minnu bɛ taa kɔkanna yeelen barikamaw la

Ɲɛda dɔnni algorisimu kɛrɛnkɛrɛnnen, ɲɛda dɔnni tigitigi, ɲɛda dɔnni waati ka dɔgɔ ni 0,5s ye

CPU min bɛ so kɔnɔ, o bɛ don a kɔnɔ

Ni baara kɛra ni LINUX baarakɛminɛn ye, o sitɛmu bɛ sabati

Boli waati kɔrɔ ye dɛsɛw ni ɲɔgɔn cɛ MTBF>50000h

A bɛ dɛmɛ don fo 20.000+ ɲɛda sumalen gafemarayɔrɔw ani 60.000 dɔnni sɛbɛnw

Baarakɛyɔrɔ funteni: -20°C-55℃

So kɔnɔ IP42 ji ni buguri tɛ don a la

Dɛmɛ don anti-tamper alarma la

A bɛ mikro doncogo mankan ni kumakanfɔbaga bɔli mankan dɛmɛ

Fɛnɲɛnɛmafagalanw (I/O, WG26, WG34, RJ45, da sensor, da wulilan, da wulicogo, alarma, RS485)

4,3 inch capacitive multi-touch screen, ja tɛ sɔgɔ walima ka mɛn
