Ɲɛda dɔnni masin

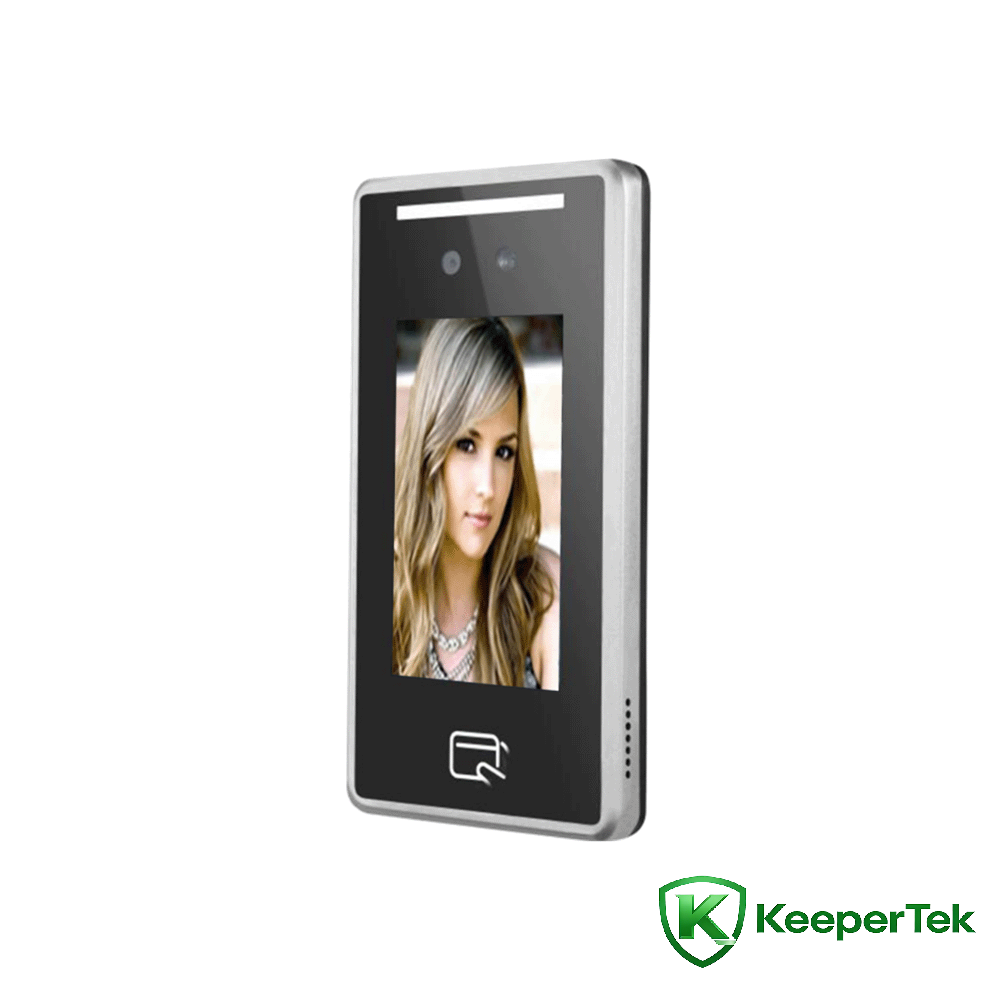

4.3inch jama Ɲɛda ka yira bɔrɔsi Karti intégré mansin KT- FR003

Fɛnɲɛnɛmako paramɛtiriw

Baarakɛminɛn: ARM Cortex-A7 min bɛ ni fila ye, @1.0GHz

A maracogo: RAM: 256MB ROM: 8GB

Baarakɛminɛn: Linux baarakɛminɛn

Lens: 4,32mm focal janya

Karti sɛgɛsɛgɛli modulu: 13,56MHz karti sɛgɛsɛgɛli modulu min bɛ se ka kɛ ni frequenceba ye, a bɛ ISO/IEC 14443 TypeA dɛmɛ, a bɛ IC kartiw kalanni dɛmɛ

Etɛrinɛti : 100M Etɛrinɛti port, min bɛ bɛn IEEE802.3/802.3u sariya ma, o bɛ IPV4 ni IPV6 protocolw dɛmɛ

Wifi modulu: 2,4GHz WiFi kumaɲɔgɔnya kelen-kelen, a bɛ 802,11 b/g protocol dɛmɛ, a hakɛ cayalenba ye 54Mbps ye

Bluetooth modulu: BT 4.2 Modulation fɛɛrɛ: DPSK, DQPSK, GFSK Laseli hakɛ: 1Mbps~3Mbps

Écran: Écran IPS LCD 4,3 inch

Maga: Maga min bɛ kɛ ni seko ye

Kumafɔla: mankan bonya bɛ se ka ladilan, fanga 1W

Dɔnniya yɔrɔjan: 0,3 ~ 1,5 mɛtɛrɛ

Ɲɛda fan: degere 30 numan fɛ ni numan fɛ, degere 30 sanfɛ ni duguma

A dɔnni waati: a tɛ sekɔndi 0,5 ma

Ɲɛda seko: 1000

Sɛbɛnni seko: Disikiw 70 000

Seko ni dɔnko doncogo: DC12V/2A

Réseau interface: 1 100M Etɛrinɛti port

Wiegand ka ɲɔgɔndan: 1 Wiegand bɔli

Alarm interface: 1 kanal alarma doncogo

Da sensor interface: 1 da sensor donna

Da wulicogo: 1 da wulicogo donna

Kumaɲɔgɔnya siratigɛ: 1 RS485 kumaɲɔgɔnya siratigɛ

USB-interface: 1 USB2.0 Ɲɛfɔli suguya A

Kamera: Kamera ɲɛ fila, yeelen yelen ani infrarouge kɛrɛfɛ, o bɛ farikolo ɲɛnamaw dɔnni dɛmɛ

Pixel nafamaw: Pixel nafama miliyɔn 2,1

Yeelen hakɛ fitinin : kulɛri 0,01Lux @F1.2 (ICR); nɛrɛ ni nɛrɛ 0,001Lux @F1.2 (ICR) .

Siginiden ni mankan hakɛ: ≥50db (AGC OFF) .

Dinamique range belebele: 100db, ISP algorithm ɲɛda yɔrɔ dɔ jirali

Baarakɛyɔrɔ funteni: -10°C fo +50℃

Baarakɛ nɛnɛ: 10% ~ 90% nɛnɛ hakɛ danfaralen, nɛnɛ tɛ

Minɛnw fanga: 10W (MAX) .

ESD : ɲɔgɔndan ±4KV, fiɲɛ ±6KV

Lakanali hakɛ: IP42

Kuranko: DC12V/2A

Fɛn dilannen hakɛ: 173,5 * 90,0 * 24,0 (mm)

Suguya

Aw bɛ farikolo ɲɛnamaw dɔnni dɛmɛ ni ɲɛkisɛ fila ye

·A bɛ ɲɛda nɔfɛtaama ni mɔgɔw jirali dɛmɛ minnu bɛ taa kɔkanna yeelen barikamaw la

·Ɲɛda dɔnni algorisimu kɛrɛnkɛrɛnnen, ɲɛda dɔnni tigitigi, ɲɛda dɔnni waati ka dɔgɔ ni 0,5s ye

·CPU min bɛ so kɔnɔ, o bɛ don a kɔnɔ

·Ni baara kɛra ni LINUX baarakɛminɛn ye, o sitɛmu bɛ sabati

·Boli waati kɔrɔ ye dɛsɛw ni ɲɔgɔn cɛ MTBF>50000h

·Baarakɛyɔrɔ funteni: -10°C- +50℃

·Dɛmɛ don ɲɛfɛla minɛnw labɛnni na, baarakɛlaw tɔgɔ sɛbɛnni, kunnafoniw ɲinini ani baara wɛrɛw

·Nafolo fɛnɲɛnamafagalanw (USB2.0, da sensor doncogo, da wuli doncogo, alarma doncogo, Wiegand bɔli, a ɲɔgɔnnaw)

·4,3-inch capacitive touch screen, ja tɛ sɔgɔ walima ka mɛn
