Ɲɛda dɔnni masin

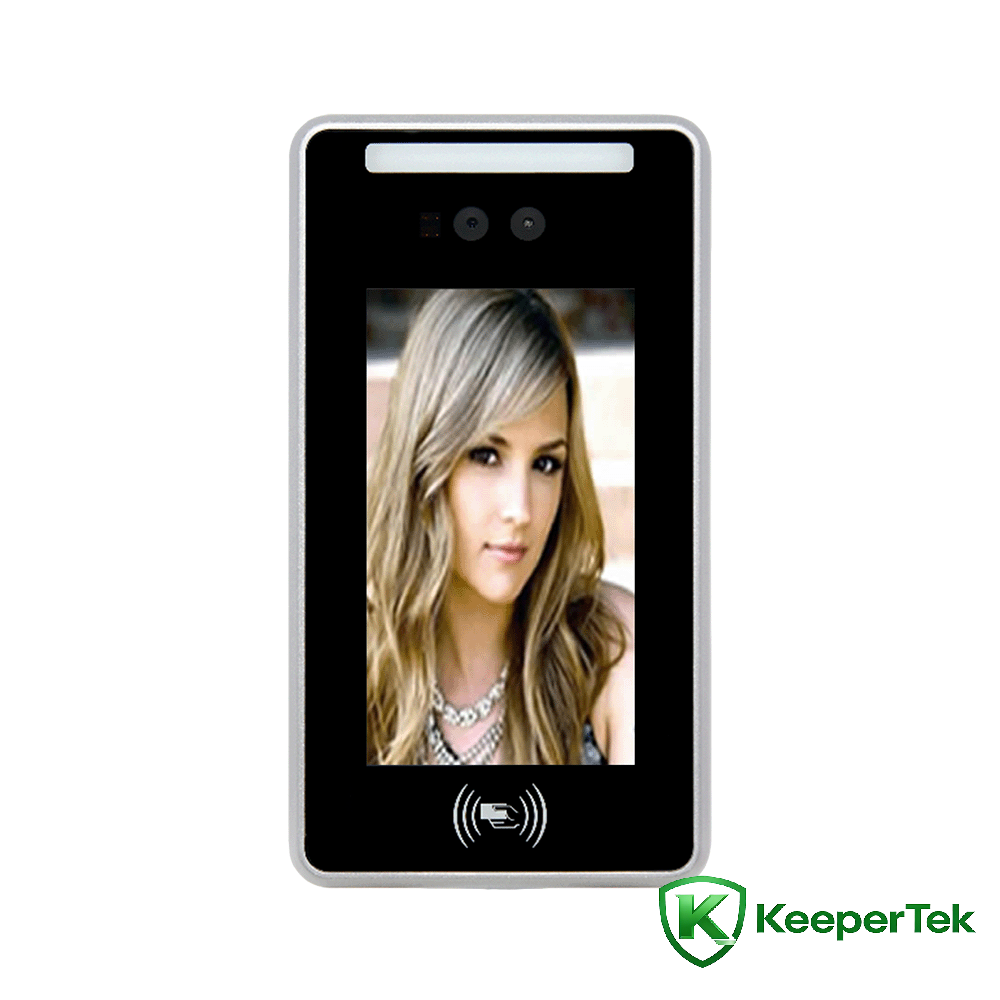

7inch jama Ɲɛda dɔnni karti swiping all-in-one machine KT- FR007

Fɛnɲɛnɛmako paramɛtiriw

Baarakɛminɛn: ARM Cortex-A7 min bɛ ni fila ye, @1.0GHz

Baarakɛminɛn: Linux baarakɛminɛn

A maracogo: 8GB EMMC

Kamera: Binocular, 2,1 miliyɔn pixel nafama, 1920*1080

Jalabɔminɛn: 1/2.8" Progressive Scan CMOS

Lens: 6mm ye

Karti swiping module: 13.56MHz, a bɛ Mifare S50, S70 kartiw, ultralinght kartiw, NTAG kartiw, DESFire D21, D41, D81, CPU kartiw dɛmɛ minnu tɛ ɲɔgɔn sɔrɔ

WIFI module: IEEE 802.11b/g/n standard, a bɛ 2.4GHz frequency band dɛmɛ, teliya hakɛ 1Mbps-150Mbps

Bluetooth modulu: 8DPSK, π/4DQPSK, GFSK, teliya hakɛ 1Mbps-2, 3Mbps

Kumafɔla: standard, kan fɔcogo kɔnɔkow bɛ se ka kɛ ka kɛɲɛ ni mɔgɔw sago ye

Dɔnniya janya: 1,2 ~ 2,2 mɛtɛrɛ, angle ladilan

Dɔnniya yɔrɔjan: mɛtɛrɛ 0,5~1,5, a bɛ Yɛlɛma ka Kɛɲɛ ni lensɛri ye

Ɲɛda fan: degere 30 numan fɛ ni numan fɛ, degere 30 sanfɛ ni duguma

A dɔnni waati: a tɛ sekɔndi 0,5 ma

A maracogo: 60 000 ye ja talenw sɛbɛn

Ɲɛda seko: 20 000

Karti suguya minnu bɛ se ka sɔgɔsɔgɔ: 13,56MHz, ID karti seriyali nimɔrɔ, Mifare, NFC (ID karti kalanbaga min bɛ don a kɔnɔ)

Switching output: 1 switching output, GPIO port wɛrɛw bɛ se ka kɛ ka kɛɲɛ ni mɔgɔw sago ye

USB-yɔrɔ: USB-yɔrɔ 1 i n’a fɔ minɛn

Réseau interface: 1 RJ45 10M/100M adaptive Ethernet port, Gigabit rezo port min bɛ se ka ladilan

Wiegand ka ɲɔgɔndan: 1 Wiegand ɲɔgɔndan bɔli, 1 Wiegand ɲɔgɔndan doncogo

Kumaɲɔgɔnya siratigɛ: 1 RS485 ɲɔgɔndan

Kamera: Kamera ɲɛ fila, yeelen yelen ani infrarouge kɛrɛfɛ, o bɛ farikolo ɲɛnamaw dɔnni dɛmɛ

Pixel nafamaw: Pixel nafama miliyɔn 2,1, 1920*1080

Yeelen hakɛ fitinin : kulɛri 0,01Lux @F1.2 (ICR); nɛrɛ ni nɛrɛ 0,001Lux @F1.2 (ICR) .

Siginiden ni mankan hakɛ: ≥50db (AGC OFF) .

Baarakɛyɔrɔ funteni: -30°C - +60℃

Baarakɛ nɛnɛ: 0~90% nɛnɛ hakɛ, nɛnɛ tɛ

Minɛnw fanga: 10W (MAX) .

Kɔgɔji fiyɛta hakɛ : Rp6 walima ka tɛmɛ o kan

Antistatique : contact ±6KV, fiɲɛ ±8KV

Kuranko: DC12V/2A

Nivo min bɛ kɛ ka yurukuyuruku kɛlɛ: IK06

Lakanali hakɛ: IP66

Écran specifications: 7-inch IPS ekran min ka bon kosɛbɛ

Minɛnw hakɛ: 252 (janya) * 136 (bonya) * 26 (kɔnɔna) mm

Suguya

Aw bɛ farikolo ɲɛnamaw dɔnni dɛmɛ ni ɲɛkisɛ fila ye

A bɛ ɲɛda nɔfɛtaama ni mɔgɔw jirali dɛmɛ minnu bɛ taa kɔkanna yeelen barikamaw la

Ɲɛda dɔnni algorisimu kɛrɛnkɛrɛnnen, ɲɛda dɔnni tigitigi, ɲɛda dɔnni waati ka dɔgɔ ni 0,5s ye

CPU min bɛ so kɔnɔ, o bɛ don a kɔnɔ

Ni baara kɛra ni LINUX baarakɛminɛn ye, o sitɛmu bɛ sabati

Boli waati kɔrɔ ye dɛsɛw ni ɲɔgɔn cɛ MTBF>50000h

A bɛ dɛmɛ don fo 20.000+ ɲɛda sumalen gafemarayɔrɔw ani 60.000 dɔnni sɛbɛnw

Interface protocoles nafamaw, minnu bɛ TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocoles dɛmɛ Windows/Linux ani platform wɛrɛw kɔnɔ

Baarakɛyɔrɔ funteni: -30°C-60℃

IP66 ji ni buguri tɛ don a la

Jatigila min bɛ IC karti swiping module kɔnɔ

Fɛnɲɛnɛmafagalanw (I/O, WG26, WG34, RJ45, USB, RS485)

7-inch IPS full-viewing HD display, a tɛ kɛ ni nɔgɔ ye walima ka mɛn jaw la
