Ɲɛda dɔnni masin

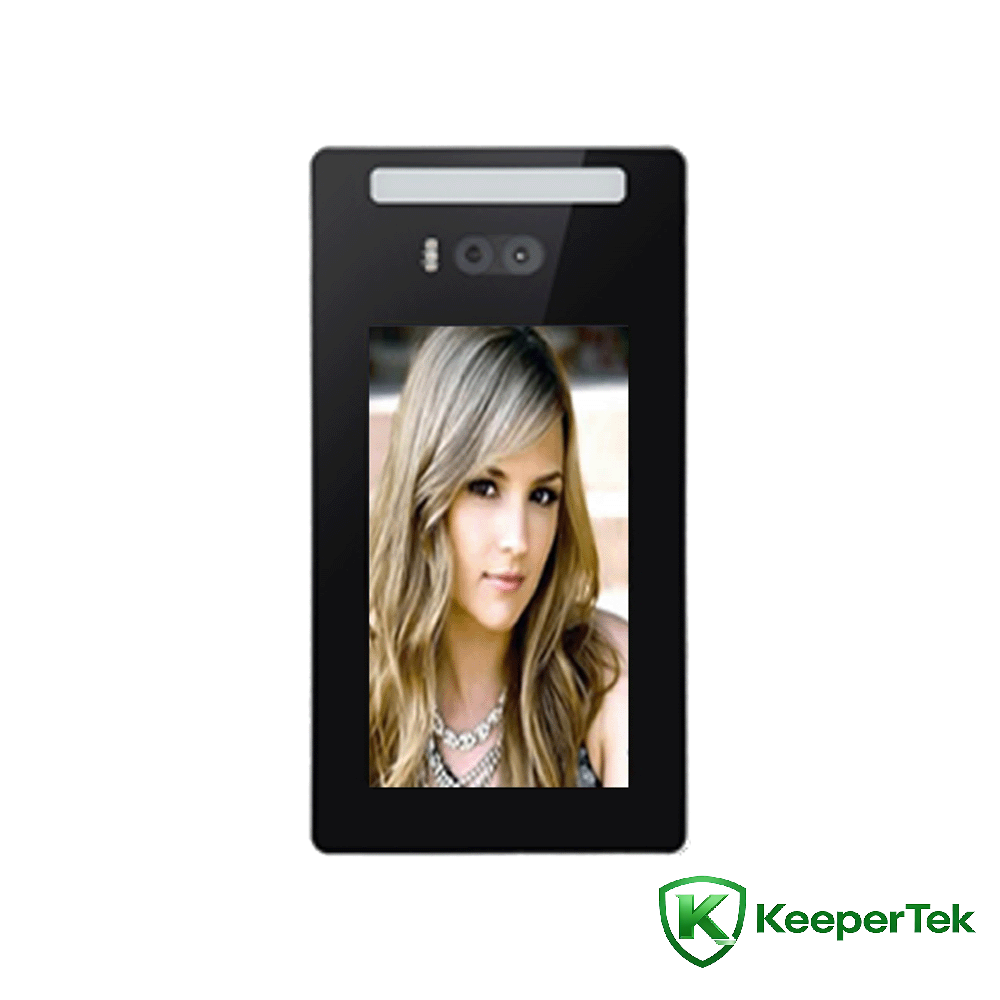

7inch jama Ɲɛda dɔnni bɛɛ-ka-masin KT- FR006

Processeur: ARM Cortex-A7 min bɛ kɛ ni fɛn fila ye

Baarakɛminɛn: Linux baarakɛminɛn

A maracogo: 1GB RAM + 8GB eMMC

Kamera: Binocular, 2,1 miliyɔn pixel nafama, 1920*1080

Jalabɔminɛn: 1/2.8" Progressive Scan CMOS

Lens: 6mm ye

Karti swiping module (a bɛ se ka kɛ): 13.56MHz, a bɛ Mifare S50, S70 kartiw, ultralinght kartiw, NTAG kartiw, DESFire D21, D41, D81, CPU kartiw dɛmɛ minnu tɛ ɲɔgɔn sɔrɔ

Wifi modulu (a bɛ se ka kɛ): 2,4GHz frequence band, IEEE802 b/g/n protocole； 5GHz frequency band, IEEE802 a/n/ac protocole

Kumafɔla: standard, kan fɔcogo kɔnɔkow bɛ se ka kɛ ka kɛɲɛ ni mɔgɔw sago ye

Dɔnniya janya: 1,2 ~ 2,2 mɛtɛrɛ, angle ladilan

Dɔnniya yɔrɔjan: mɛtɛrɛ 0,5~1,5, a bɛ Yɛlɛma ka Kɛɲɛ ni lensɛri ye

A dɔnni waati: a tɛ sekɔndi 0,3 ma

Sɛbɛnni seko: Jatebla 80 000

Ɲɛda seko: 30.000

Écran yeelen: ≥400 cd/m2

Switching output: 1 switching output, GPIO port wɛrɛw bɛ se ka kɛ ka kɛɲɛ ni mɔgɔw sago ye

Réseau interface: 1 RJ45 10M/100M adaptive Ethernet port, Gigabit rezo port min bɛ se ka ladilan

Wiegand interface: 1 Wiegand interface donna, 1 Wiegand interface bɔli

USB-yɔrɔ: USB-yɔrɔ 1 i n’a fɔ minɛn

Kumaɲɔgɔnya siratigɛ: 1 RS485 ɲɔgɔndan

Kamera: Kamera ɲɛ fila, yeelen yelen ani infrarouge kɛrɛfɛ, o bɛ farikolo ɲɛnamaw dɔnni dɛmɛ

Pixel nafamaw: Pixel nafama miliyɔn 2,1, 1920*1080

Yeelen hakɛ fitinin : kulɛri 0,01Lux @F1.2 (ICR); nɛrɛ ni nɛrɛ 0,001Lux @F1.2 (ICR) .

Siginiden ni mankan hakɛ: ≥50db (AGC OFF) .

Dinamique range belebele: 120db, ISP algorithm ɲɛda yɔrɔ dɔ jirali

Wideyo kodeli: H.265 Profil kunba kodeli/H.264 BP/MP/HP kodeli/MJPEG kodeli

Web page configuration: a bɛ dɛmɛ

Minɛn yɔrɔjan sɛgɛsɛgɛli: a bɛ dɛmɛ

Labɛncogo : a bɛ foroba rezow ni LAN baara dɛmɛ

Baarakɛyɔrɔ funteni: -30°C - +60℃

Baarakɛ nɛnɛ: 0~90% nɛnɛ hakɛ, nɛnɛ tɛ

Kɔgɔji fiyɛta hakɛ : Rp6 walima ka tɛmɛ o kan

Antistatique : contact ±6KV, fiɲɛ ±8KV

Kuranko: DC12V/2A

Nivo min bɛ kɛ ka yurukuyuruku kɛlɛ: IK06

Lakanali hakɛ: IP66

Minɛnw fanga: 20W(MAX)

Minɛnw hakɛ: 240 (janya) * 128 (bonya) * 28 (kɔnɔna) mm

Suguya

Aw bɛ farikolo ɲɛnamaw dɔnni dɛmɛ ni ɲɛkisɛ fila ye

A bɛ ɲɛda nɔfɛtaama ni mɔgɔw jirali dɛmɛ minnu bɛ taa kɔkanna yeelen barikamaw la

Ɲɛda dɔnni algorisimu kɛrɛnkɛrɛnnen, ɲɛda dɔnni tigitigi, ɲɛda dɔnni waati ka dɔgɔ ni 0,3s ye

Ni baara kɛra ni LINUX baarakɛminɛn ye, o sitɛmu bɛ sabati

H.265 encoding format video stream bɛ tali kɛ NVR ni marayɔrɔ wɛrɛw la ONVIF protocol ani GB28181 protocol fɛ.

A bɛ sigida marali dɛmɛ TF karti kɔnɔ, ni jaw marali ye ka taa a fɛ san 1 kɔnɔ ani wideyow marali kalo 1 kɔnɔ walima ka tɛmɛ o kan (ka kɛɲɛ ni TF karti sugandilen seko ye)

Boli waati kɔrɔ ye dɛsɛw ni ɲɔgɔn cɛ MTBF>50000h

A bɛ ɲɛda sumalen gafemarayɔrɔ 30.000+ dɛmɛ ani dɔnni sɛbɛn 80.000

Interface protocoles nafamaw, minnu bɛ TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocoles dɛmɛ Windows/Linux ani platform wɛrɛw kɔnɔ

Baarakɛyɔrɔ funteni: -30°C-60℃

IP66 ji ni buguri tɛ don a la

Fɛnɲɛnɛmafagalanw (I/O, WG26, WG34, RJ45, USB, RS485)

7-inch IPS full-viewing HD display, a tɛ kɛ ni nɔgɔ ye walima ka mɛn jaw la

Tɔnɔ otomatiki ni balansi finman otomatiki b’a to ja kulɛri lakika bɛ se ka segin a cogo kɔrɔ la

Sensɛri yeelen hakɛ nɛrɛma min bɛ don a kɔnɔ min bilalen bɛ wideyow kɔlɔsili kama, yeelen dɔgɔman dɔnni ka ɲɛ kosɛbɛ

3D mankan dɔgɔyali ani sisi doncogo fɛɛrɛ bɛ kɔlɔsili jaw kɛ yeelen dɔgɔman jukɔrɔ ka jɛya ani ka ɲɛfɔ ka ɲɛ

Dɛmɛ don videyo yɔrɔ dɔ balili la

Dɛmɛ don ROI kodɔnni na

Balance blanche automatique, balance blanche manuel bɛ sɔrɔ

Dɛmɛ don 2D mankan dɔgɔyali la ani 3D mankan dɔgɔyali la

A bɛ videyo yeelen, danfara, kulɛri, saturation ani gamma ladilanni dɛmɛ

Dɛmɛ ka otomatiki jirali waati maksimali sigi sen kan

Dɛmɛ bɛ ɲɛda hakililata jiracogo ani ɲɛda hakililata ɲɛtaa sigicogo
