Ɲɛda dɔnni masin

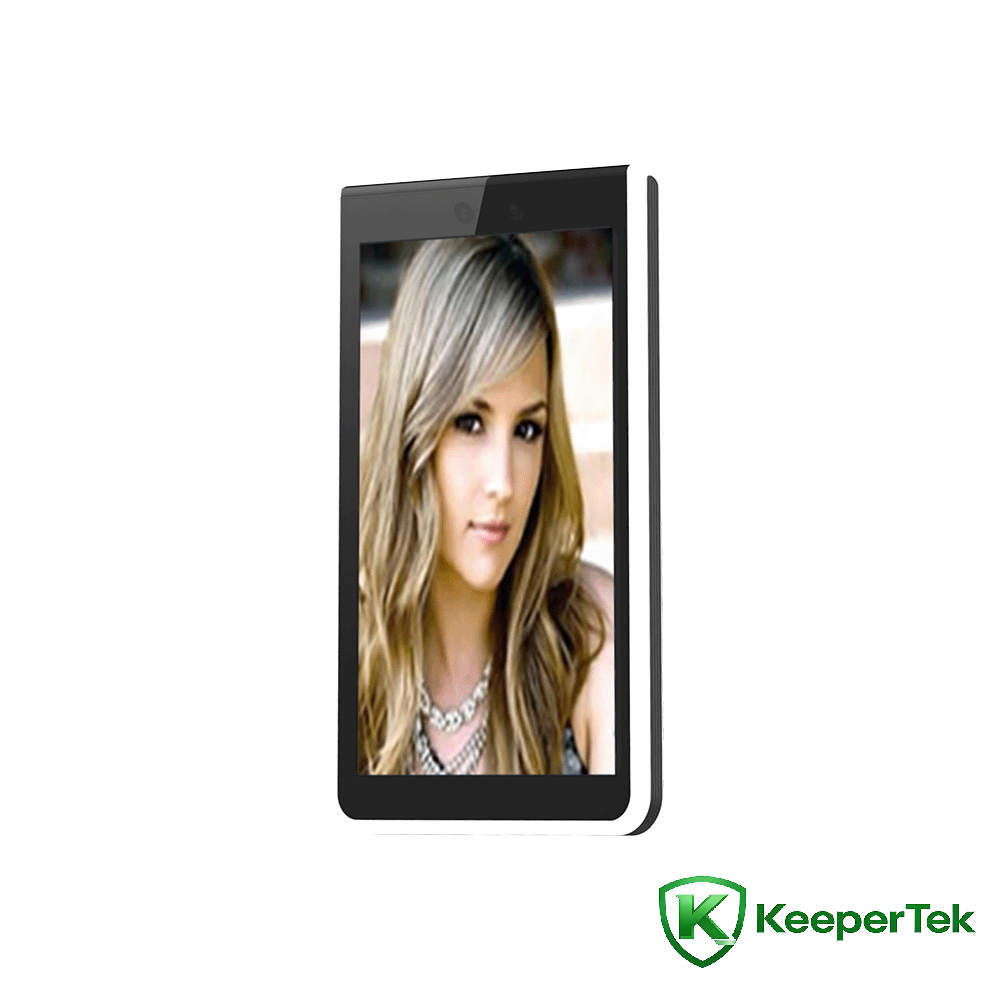

8inch ɲɛda ka yira bɔrɔsi Ultra-thin karti bɛɛ-ka-masin KT- FR011

Fɛnɲɛnɛmako paramɛtiriw

Processeur: So kɔnɔ YiZhi puce, processeur dual-core + 1G hakilijagabɔ + 16G EMMC

Baarakɛminɛn: Linux baarakɛminɛn

Ladonni: Dɛmɛ don TF karti marali la (a bɛ se ka kɛ i yɛrɛ sago ye) .

Kamera: Binocular, 2,1 miliyɔn pixel nafama, 1920*1080

Jalabɔminɛn: 1/2.8" Progressive Scan CMOS

Lens: 4,5mm focal janya

WiFi modulu : 2,4GHz frequency band, IEEE802 b/g/n protocole； 5GHz frequency band, IEEE802 a/n/ac protocole

Karti suguya minnu bɛ se ka swipe: mifare one (M1), S50, S70, NTAG2xx ani 13.56MHz frequency band karti wɛrɛw, TK, EM ani series 125KHz frequency band karti wɛrɛw (IC/ID bɛ dɛmɛ)

Kumafɔla: Kumakan fɔcogo kɔnɔkow bɛ se ka kɛ ka kɛɲɛ ni mɔgɔw sago ye

Dɔnniya janya: 1,2 ~ 2,3 mɛtɛrɛ, angle ladilan

Dɔnniya yɔrɔjan: 0,5 ~ 2,5 mɛtɛrɛ

Ɲɛda fan: degere 30 numan fɛ ni numan fɛ, degere 30 sanfɛ ni duguma

A dɔnni waati: a tɛ sekɔndi 0,3 ma

A maracogo: 160 000 ye ja talenw sɛbɛn

Ɲɛda seko: mɔgɔ 24 000

Seko ni dɔnko doncogo: DC12V/2A

Réseau interface: 1 RJ45 10M/100M adaptive Ethernet port, Gigabit rezo port min bɛ se ka ladilan

Wiegand ka ɲɔgɔndan: 1 Wiegand ɲɔgɔndan bɔli, 1 Wiegand ɲɔgɔndan doncogo

Alarm interface: 1-way tasuma alarma doncogo

Da sensor interface: 1 da sensor interface donna

Da wulicogo: 1 da wulicogo donna

Da la bεnkan: 1 da bεε bεε bε bεn

Da tugu ɲɔgɔn na: 1 da tugu ɲɔgɔn na bɔli

Kumaɲɔgɔnya siratigɛ: 1 RS485 kumaɲɔgɔnya siratigɛ

USB-yɔrɔ: USB-yɔrɔ 1

Kamera: Kamera ɲɛ fila, ɲɛkisɛ bɛɛ, yeelen yelen ani infrarouge kɛrɛfɛ, o bɛ farikolo ɲɛnamaw dɔnni dɛmɛ

Pixel nafamaw: Pixel nafama miliyɔn 2,1, 1920*1080

Yeelen hakɛ fitinin : kulɛri 0,01Lux @F1.2 (ICR); nɛrɛ ni nɛrɛ 0,001Lux @F1.2 (ICR) .

Siginiden ni mankan hakɛ: ≥50db (AGC OFF) .

Dinamique range belebele: 120db, ISP algorithm ɲɛda yɔrɔ dɔ jirali

Wideyo kodeli: H.265 Profil kunba kodeli/H.264 BP/MP/HP kodeli/MJPEG kodeli

Baarakɛyɔrɔ funteni: -20°C-55℃

Baarakɛ nɛnɛ: 0~90% nɛnɛ hakɛ, nɛnɛ tɛ

Minɛnw fanga: 20W(MAX)

Kɔgɔji fiyɛta hakɛ : Rp6 walima ka tɛmɛ o kan

Antistatique : contact ±6KV, fiɲɛ ±8KV

Kuranko: DC12V/2A

Lakanali hakɛ: IP42

Écran specifications: 8 inch IPS ekran min ka bon kosɛbɛ

Minɛnw hakɛ: 215,22 * 130 * 18mm

Suguya

Aw bɛ farikolo ɲɛnamaw dɔnni dɛmɛ ni ɲɛkisɛ fila ye

A bɛ ɲɛda nɔfɛtaama ni mɔgɔw jirali dɛmɛ minnu bɛ taa kɔkanna yeelen barikamaw la

Ɲɛda dɔnni algorisimu kɛrɛnkɛrɛnnen, ɲɛda dɔnni tigitigi, ɲɛda dɔnni waati ka dɔgɔ ni 0,3s ye

CPU min bɛ so kɔnɔ, o bɛ don a kɔnɔ

Ni baara kɛra ni LINUX baarakɛminɛn ye, o sitɛmu bɛ sabati

H.265 encoding format video stream bɛ tali kɛ NVR ni marayɔrɔ wɛrɛw la ONVIF protocol ani GB28181 protocol fɛ.

A bɛ sigida marali dɛmɛ TF karti kɔnɔ, ni jaw marali ye ka taa a fɛ san 1 kɔnɔ ani wideyow marali kalo 1 kɔnɔ walima ka tɛmɛ o kan (ka kɛɲɛ ni TF karti sugandilen seko ye)

Boli waati kɔrɔ ye dɛsɛw ni ɲɔgɔn cɛ MTBF>50000h

A bɛ ɲɛda sumalen gafemarayɔrɔ 24.000+ dɛmɛ ani dɔnni sɛbɛn 160.000

Interface protocoles nafamaw, minnu bɛ TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocoles dɛmɛ Windows/Linux ani platform wɛrɛw kɔnɔ

Baarakɛyɔrɔ funteni: -20°C-55℃

Dɛmɛ don anti-tamper alarma la

A bɛ dɛmɛ don ka kumakan ni wideyow sankaba intercom docking

Dɛmɛ don touch screen ɲɛfɛla ɲɛnabɔli ni a labɛnni na

Fɛnɲɛnɛmafagalanw (I/O, WG26, WG34, RJ45, USB, da sensor, da wulilan, da wulicogo, alarma, RS485)

8-inch IPS full-viewing HD display, a tɛ kɛ ni nɔgɔ ye walima ka mɛn jaw la

Tɔnɔ otomatiki ni balansi finman otomatiki b’a to ja kulɛri lakika bɛ se ka segin a cogo kɔrɔ la

Sensɛri yeelen hakɛ nɛrɛma min bɛ don a kɔnɔ min bilalen bɛ wideyow kɔlɔsili kama, yeelen dɔgɔman dɔnni ka ɲɛ kosɛbɛ

3D mankan dɔgɔyali ani sisi doncogo fɛɛrɛ bɛ kɔlɔsili jaw kɛ yeelen dɔgɔman jukɔrɔ ka jɛya ani ka ɲɛfɔ ka ɲɛ

Dɛmɛn kode stream ani I frame interval settings

Dɛmɛ don videyo yɔrɔ dɔ balili la

Dɛmɛ don ROI kodɔnni na

Balance blanche automatique, balance blanche manuel bɛ sɔrɔ

Dɛmɛ don a ka waati hakɛ caman sigicogo la

Telefɔni selilɛri kɔlɔsili sigicogo dɛmɛ

Dɛmɛ don 2D mankan dɔgɔyali la ani 3D mankan dɔgɔyali la

A bɛ dɛmɛ don sɛbɛnni bolodacogo waati waati ni upload fɛɛrɛ sigicogo la

A bɛ videyo yeelen, danfara, kulɛri, saturation ani gamma ladilanni dɛmɛ

Dɛmɛ ka otomatiki jirali waati maksimali sigi sen kan

Dɛmɛ bɛ ɲɛda hakililata jiracogo ani ɲɛda hakililata ɲɛtaa sigicogo
