Ɲɛda dɔnni masin

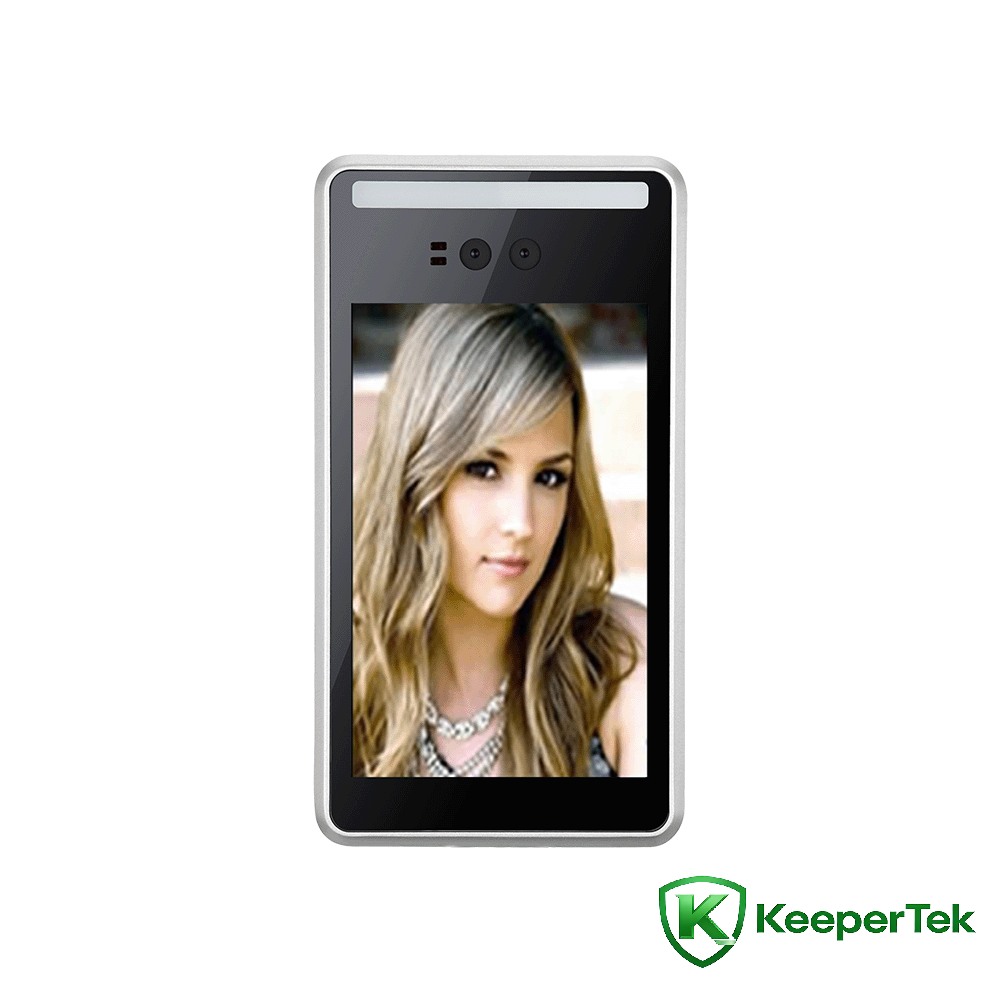

8inch ɲɛda Dɔnniya bɛɛ-ka-masin KT- FR012

Fɛnɲɛnɛmako paramɛtiriw

Processeur: ARM Cortex-A7 min bɛ kɛ ni fɛn fila ye

Baarakɛminɛn: Linux baarakɛminɛn min bɛ don a kɔnɔ

A maracogo: 1GB RAM + 8GB eMMC

Lajɛyɔrɔ: Jiginnen Lajɛyɔrɔ: 30°； Lajɛyɔrɔ tilennen: 30°

Jalabɔminɛn: 1/2.8" Progressive Scan CMOS

Lens: 6mm ye

Karti swiping module (a bɛ se ka kɛ): 13.56MHz, a bɛ Mifare S50, S70 kartiw, ultralinght kartiw, NTAG kartiw, DESFire D21, D41, D81, CPU kartiw dɛmɛ minnu tɛ ɲɔgɔn sɔrɔ

4G modulu (a bɛ se ka kɛ): a bɛ LTE-FDD, LTE-TDD, DC-HSPA+, WCDMA, EDGE, GPRS ani ɛntɛrinɛti sariya wɛrɛw dɛmɛ, ni jiginɛ hakɛ cayalenba ye 160Mbps ye ani jiginni hakɛ cayalenba ye 60Mbps ye

Wifi modulu (a bɛ se ka kɛ): 2,4GHz frequence band, IEEE802 b/g/n protocole； 5GHz frequency band, IEEE802 a/n/ac protocole

Kumafɔla: standard, kan fɔcogo kɔnɔkow bɛ se ka kɛ ka kɛɲɛ ni mɔgɔw sago ye

Dɔnniya janya: 1,2 ~ 2,2 mɛtɛrɛ, angle ladilan

Dɔnniya yɔrɔjan: mɛtɛrɛ 0,5~1,5, a bɛ Yɛlɛma ka Kɛɲɛ ni lensɛri ye

A dɔnni waati: a tɛ sekɔndi 0,3 ma

Sɛbɛnni seko: Jatebla 80 000

Ɲɛda seko: 30.000

Écran yeelen: ≥400 cd/m2

Réseau interface: 1 RJ45 10M/100M adaptive Ethernet port, Gigabit rezo port min bɛ se ka ladilan

Wiegand ka ɲɔgɔndan: 1 Wiegand ɲɔgɔndan bɔli, 1 Wiegand ɲɔgɔndan doncogo

Da sensor interface: 1 kanal da sensor interface

Da da wulicogo: 1 sira da wulicogo

Da tugucogo: 1-way da tugucogo

Kumaɲɔgɔnya siratigɛ: 1 kan 485 kumaɲɔgɔnya yɔrɔ

Kamera: Kamera ɲɛ fila, yeelen yelen ani infrarouge kɛrɛfɛ, o bɛ farikolo ɲɛnamaw dɔnni dɛmɛ

Pixel nafamaw: Pixel nafama miliyɔn 2,1, 1920*1080

Yeelen hakɛ fitinin : kulɛri 0,01Lux @F1.2 (ICR); nɛrɛ ni nɛrɛ 0,001Lux @F1.2 (ICR) .

Siginiden ni mankan hakɛ: ≥50db (AGC OFF) .

Dinamique range belebele: 120db, ISP algorithm ɲɛda yɔrɔ dɔ jirali

Wideyo kodeli: H.265 Profil kunba kodeli/H.264 BP/MP/HP kodeli/MJPEG kodeli

Baarakɛyɔrɔ funteni: -30°C - +60℃

Baarakɛ nɛnɛ: 0~90% nɛnɛ hakɛ, nɛnɛ tɛ

Kɔgɔji fiyɛta hakɛ : Rp6 walima ka tɛmɛ o kan

Antistatique : contact ±6KV, fiɲɛ ±8KV

Kuranko: DC12V/2A

Nivo min bɛ kɛ ka yurukuyuruku kɛlɛ: IK06

Lakanali hakɛ: IP66

Minɛnw fanga: 20W(MAX)

Minɛnw hakɛ: 252 (janya) * 136 (bonya) * 26 (kɔnɔna) mm

Suguya

Aw bɛ farikolo ɲɛnamaw dɔnni dɛmɛ ni ɲɛkisɛ fila ye

Ɲɛda ɲɛnama dɔnni algorisimu kɛrɛnkɛrɛnnen, ɲɛda dɔnni tigitigi, ɲɛda dɔnni waati ka dɔgɔ ni 0,3s ye

Boli waati kɔrɔ ye dɛsɛw ni ɲɔgɔn cɛ MTBF>50000H

A bɛ ɲɛda nɔfɛtaama ni mɔgɔw jirali dɛmɛ minnu bɛ taa kɔkanna yeelen barikamaw la

Interface protocoles nafolotigiw, minnu bɛ SDK ni HTTP protocoles dɛmɛ plateforme caman kan i n’a fɔ Linux/Windows

Ni baara kɛra ni Linux baarakɛminɛn ye, sistɛmu sabatili ka fisa

A bɛ ɲɛda sumalen gafemarayɔrɔ 30.000+ dɛmɛ ani dɔnni sɛbɛn 80.000

A bɛ TF karti bonya marali dɛmɛ, jaw bɛ se ka mara ka taa a fɛ san 1 kɔnɔ, wideyow bɛ se ka mara ka taa a fɛ dɔgɔkun kelen walima ka tɛmɛ o kan

Baarakɛyɔrɔ funteni: -30°C- +60℃

Kɛnɛma IP66 ji ni buguri tɛ don a la

Minɛn bɛ sigida doncogo dɛmɛ walasa ka minɛn in ɲɛnabɔ, ka ɲininkali kɛ ani k’a labɛn.

Fɛnɲɛnɛmafagalanw (I/O, WG26, WG34, RJ45, da sensor, da wulicogo, da datugucogo, RS485)

8-inch IPS full-viewing HD display, a tɛ kɛ ni nɔgɔ ye walima ka mɛn jaw la

Tɔnɔ otomatiki ni balansi finman otomatiki b’a to ja kulɛri lakika bɛ se ka segin a cogo kɔrɔ la

Sensɛri yeelen hakɛ nɛrɛma min bɛ don a kɔnɔ min bilalen bɛ wideyow kɔlɔsili kama, yeelen dɔgɔman dɔnni ka ɲɛ kosɛbɛ

3D mankan dɔgɔyali ani sisi doncogo fɛɛrɛ bɛ kɔlɔsili jaw kɛ yeelen dɔgɔman jukɔrɔ ka jɛya ani ka ɲɛfɔ ka ɲɛ

Dɛmɛ don videyo yɔrɔ dɔ balili la

Dɛmɛ don ROI kodɔnni na

Balance blanche automatique, balance blanche manuel bɛ sɔrɔ

Dɛmɛ don 2D mankan dɔgɔyali la ani 3D mankan dɔgɔyali la

A bɛ videyo yeelen, danfara, kulɛri, saturation ani gamma ladilanni dɛmɛ

Dɛmɛ ka otomatiki jirali waati maksimali sigi sen kan

Dɛmɛ bɛ ɲɛda hakililata jiracogo ani ɲɛda hakililata ɲɛtaa sigicogo
