Ɲɛda dɔnni masin

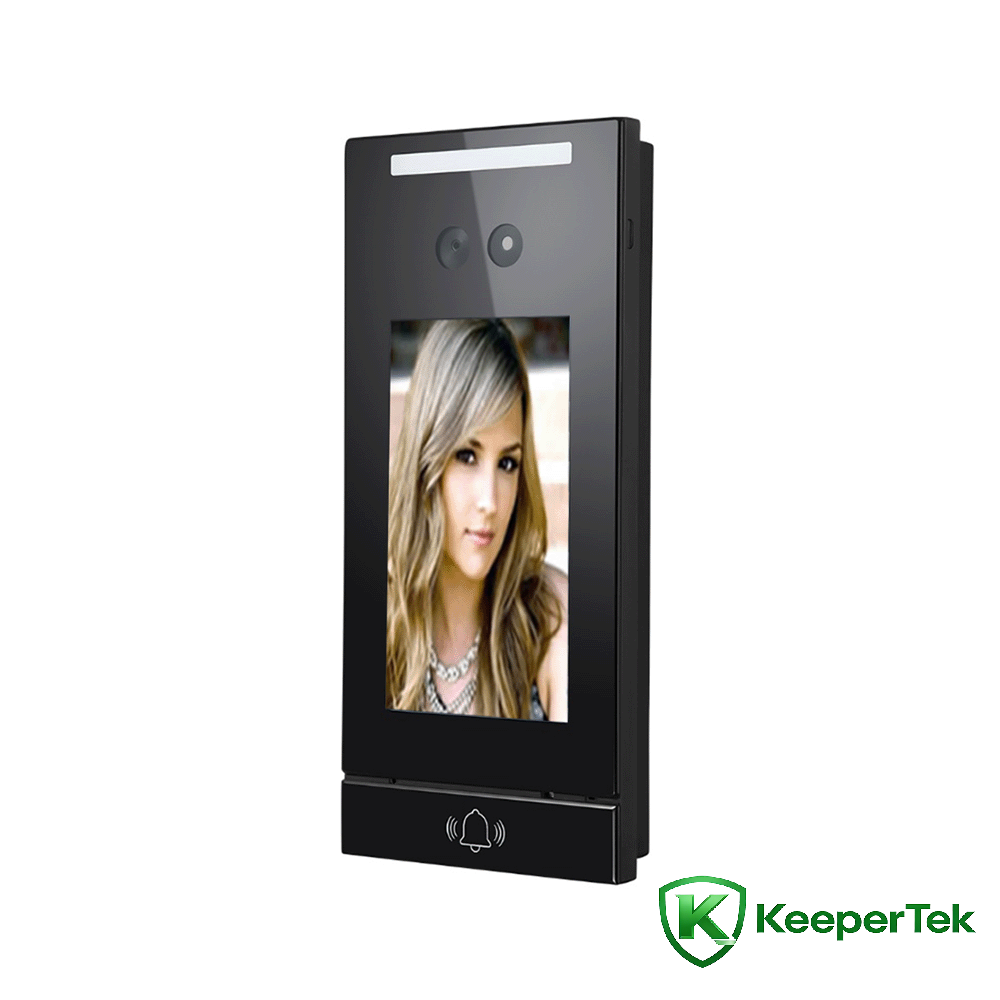

5inch jama Ɲɛda ka yira bɔrɔsi Karti intégré mansin KT- FR004

Fɛnɲɛnɛmako paramɛtiriw

porosesɛri (processeur) ye So kɔnɔ baarakɛminɛn fila-fila + 1G hakilijagabɔ + 8G EMMC

baarakɛminɛnw (operation system). Linux baarakɛminɛnw

marayɔrɔ Dɛmɛ don TF karti marali la (a bɛ se ka kɛ) .

Kamera Binocular, 2,1 miliyɔn pixel nafama, 1920*1080

Jalabɔminɛn 1/2.8" Scan ɲɛtaa CMOS

Swipe karti modulu A bɛ LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE sariya caman dɛmɛ, a bɛ se ka 150Mbps telesarse hakɛ dɛmɛ, ani 50Mbps jiginni hakɛ

Wifi modulu A bɛ se ka kɛ, 2,4GHz WiFi SoC puce, IEEE 802.11b/g/n baseband ni RF circuit min bɛ don ɲɔgɔn na, a bɛ se ka kɛ 72.2Mbit/s farikolo layɛrɛ hakɛ ye

kumalasela Standard configuration, kumakan fɔcogo kɔnɔkow bɛ se ka kɛ ka kɛɲɛ ni mɔgɔw sago ye

Identification janya 1.2 ~ 2,3 mɛtɛrɛ, angle ladilan

dɔnni yɔrɔjan 0,5 ~ 1,5 mɛtɛrɛ

ɲɛda cogoya degere 30 numan fɛ ni numan fɛ, degere 30 sanfɛ ni duguma

dɔnniya waati A ka dɔgɔn ni segin 0,5 ye

marayɔrɔ seko 80 000 ye jatebɔ sɛbɛnw ye

ɲɛda seko 10 000 ye sɛbɛnw ye

Karti suguya minnu bɛ se ka swipe 13.56MHz, a bɛ Mifare S50, S70 kartiw, ultralinght kartiw, NTAG kartiw, DESFire D21, D41, D81, CPU kartiw dɛmɛ minnu tɛ ɲɔgɔn sɔrɔ

Seko ni dɔnko doncogo DC12V/2A

rezow ka ɲɔgɔndan 1 RJ45 10M/100M adaptive Ethernet port, Gigabit réseau port min bɛ se ka ladilan

Wiegand ka ɲɔgɔndan 1 Wiegand interface bɔli, 1 Wiegand interface doncogo

Alarm interface (Alarme interface) ye 1 tasuma alarma donna, 1 alarma bɔli

Da sensor interface (dakun senfɛlan) interface 1 kanal da sensor interface donna

Da wulilen interface 1 da wulicogo interface donna

da la bɔgɔdaga ɲɔgɔndan 1 da wulilen interface bɔli

da tugucogo ɲɔgɔndan 1 kanal da lock interface bɔli

Kumaɲɔgɔnya siratigɛ la 1 kan RS485 kumaɲɔgɔnya siratigɛ la

kamera Kamera fila-fila, lensɛri min bɛ kɛ ni galasi bɛɛ ye, yeelen yelen ani infrarouge kɛrɛfɛ, o bɛ farikolo ɲɛnamaw dɔnni dɛmɛ

Pixel minnu bɛ se ka baara kɛ 2,1 miliyɔn pixel nafama, 1920*1080

yeelen min ka dɔgɔn Kulɛri 0,01Lux @F1,2 (ICR) ye; nɛrɛ ni nɛrɛ 0,001Lux @F1.2 (ICR) .

taamasiyɛn ni mankan hakɛ ≥50db(AGC OFF) .

dynamique range ka bon 120db, ISP algorithm ɲɛda yɔrɔ dɔ jirali

wideyow kodɔnni H.265 Profil kunba kodeli/H.264 BP/MP/HP kodeli/MJPEG kodeli

baarakɛcogo funteni-20℃ - +60℃

Baarakɛyɔrɔ nɛnɛ 0~90% nɛnɛ hakɛ, nɛnɛ tɛ

Minɛnw fanga 15W(MAX)

Kɔgɔ fiyɛli hakɛ Rp nivo 6 ani a sanfɛ

antistatique (banakisɛfagalan antistatique). Kontakt ±6KV, fiɲɛ ±8KV

fanga bɛ sɔrɔ a la DC12V/2A

Lakanali hakɛ IP42

Écran ka fɛnw ɲɛfɔcogo 5-inch IPS ekran min bɛ se ka ɲɛfɔ kosɛbɛ

Minɛnw hakɛ 205 (janya) * 95 (bonya) * 24,5 (a janya) milimɛtɛrɛ

Suguya

Aw bɛ farikolo ɲɛnamaw dɔnni dɛmɛ ni ɲɛkisɛ fila ye

A bɛ ɲɛda nɔfɛtaama ni mɔgɔw jirali dɛmɛ minnu bɛ taa kɔkanna yeelen barikamaw la

Ɲɛda dɔnni algorisimu kɛrɛnkɛrɛnnen, ɲɛda dɔnni tigitigi, ɲɛda dɔnni waati ka dɔgɔ ni 0,5s ye

CPU min bɛ so kɔnɔ, o bɛ don a kɔnɔ

Ni baara kɛra ni LINUX baarakɛminɛn ye, o sitɛmu bɛ sabati

H.265 encoding format video stream bɛ tali kɛ NVR ni marayɔrɔ wɛrɛw la ONVIF protocol ani GB28181 protocol fɛ.

A bɛ sigida marali dɛmɛ TF karti kɔnɔ, ni jaw marali ye ka taa a fɛ san 1 kɔnɔ ani wideyow marali kalo 1 kɔnɔ walima ka tɛmɛ o kan (ka kɛɲɛ ni TF karti sugandilen seko ye)

Boli waati kɔrɔ ye dɛsɛw ni ɲɔgɔn cɛ MTBF>50000h

A bɛ ɲɛda sumalen gafemarayɔrɔ 10.000+ dɛmɛ ani dɔnni sɛbɛn 80.000

Interface protocoles nafamaw, minnu bɛ TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocoles dɛmɛ Windows/Linux ani platform wɛrɛw kɔnɔ

Baarakɛyɔrɔ funteni: -20°C- +60℃

So kɔnɔ IP42 ji ni buguri tɛ don a la

Dɛmɛ don anti-tamper alarma la

Jatigila min bɛ IC karti kalanbaga kɔnɔ

A bɛ mikro doncogo mankan ni kumakanfɔbaga bɔli mankan dɛmɛ

Fɛnɲɛnɛmafagalanw (I/O, WG26, WG34, RJ45, da sensor, da wulilan, da wulicogo, alarma, RS485)

5-inch IPS full-viewing HD display, a tɛ sɔgɔ walima ka mɛn jaw la

Tɔnɔ otomatiki ni balansi finman otomatiki b’a to ja kulɛri lakika bɛ se ka segin a cogo kɔrɔ la

Sensɛri yeelen hakɛ nɛrɛma min bɛ don a kɔnɔ min bilalen bɛ wideyow kɔlɔsili kama, yeelen dɔgɔman dɔnni ka ɲɛ kosɛbɛ

3D mankan dɔgɔyali ani sisi doncogo fɛɛrɛ bɛ kɔlɔsili jaw kɛ yeelen dɔgɔman jukɔrɔ ka jɛya ani ka ɲɛfɔ ka ɲɛ

Dɛmɛn kode stream ani I frame interval settings

Dɛmɛ don videyo yɔrɔ dɔ balili la

Dɛmɛ don ROI kodɔnni na

Balance blanche automatique, balance blanche manuel bɛ sɔrɔ

Dɛmɛ don a ka waati hakɛ caman sigicogo la

Telefɔni selilɛri kɔlɔsili sigicogo dɛmɛ

Dɛmɛ don 2D mankan dɔgɔyali la ani 3D mankan dɔgɔyali la

A bɛ dɛmɛ don sɛbɛnni bolodacogo waati waati ni upload fɛɛrɛ sigicogo la

A bɛ videyo yeelen, danfara, kulɛri, saturation ani gamma ladilanni dɛmɛ

Dɛmɛ ka otomatiki jirali waati maksimali sigi sen kan

Dɛmɛ bɛ ɲɛda hakililata jiracogo ani ɲɛda hakililata ɲɛtaa sigicogo
