Ɲɛda dɔnni masin

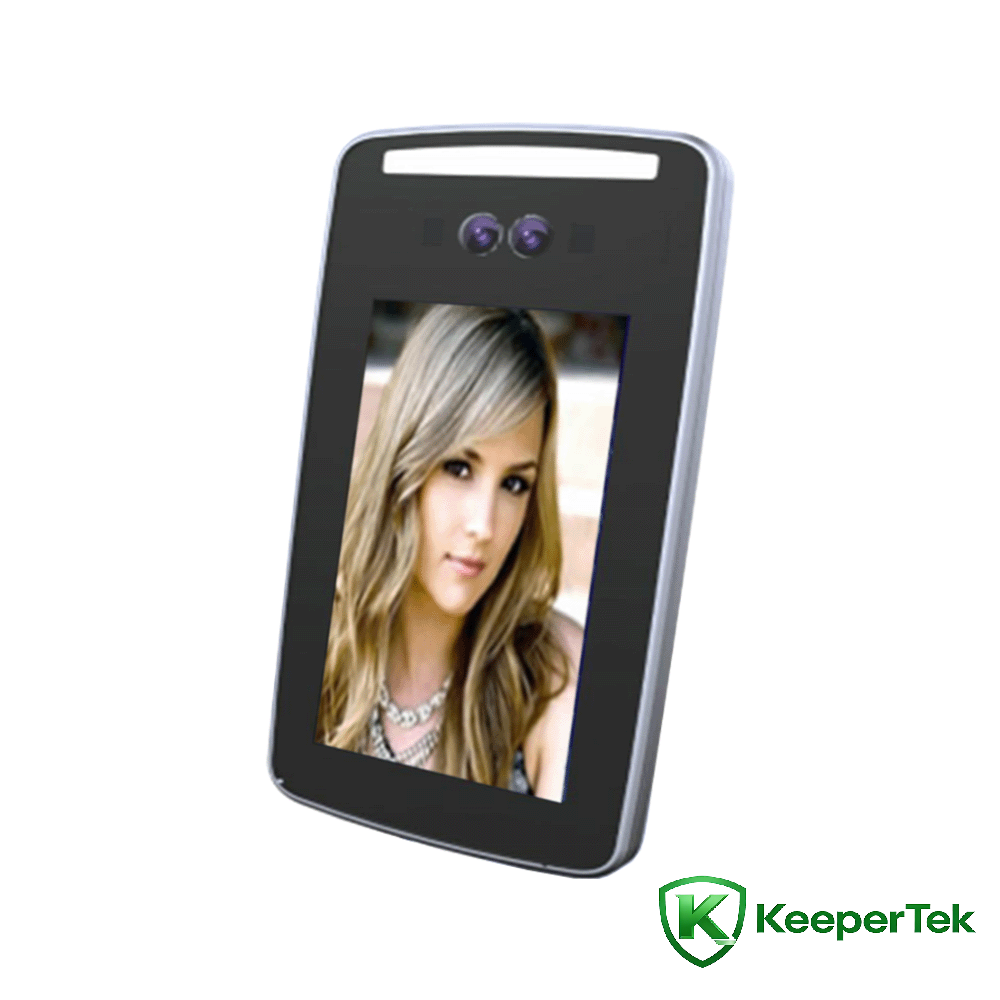

7insitiri jama Ɲɛda dɔnni bɛɛ-ka-masin KT- FR005

Fɛnɲɛnɛmako paramɛtiriw

Processeur : processeur dual-core + 1G hakilijagabɔ + 16G EMMC

Baarakɛminɛn: Linux baarakɛminɛn

Ladonni: Dɛmɛ don TF karti marali la

Kamera: Binocular, 2,1 miliyɔn pixel nafama, 1920*1080

Jalabɔlan: 1/2.8" Progressive Scan CMOS

Lens: 6mm ye

Kumafɔla: standard, kan fɔcogo kɔnɔkow bɛ se ka kɛ ka kɛɲɛ ni mɔgɔw sago ye

Dɔnniya janya: 1,2 ~ 2,2 mɛtɛrɛ, angle ladilan

Dɔnniya yɔrɔjan: mɛtɛrɛ 0,5~1,5, a bɛ Yɛlɛma ka Kɛɲɛ ni lensɛri ye

Ɲɛda fan: degere 30 numan fɛ ni numan fɛ, degere 30 sanfɛ ni duguma

A dɔnni waati: a tɛ sekɔndi 0,5 ma

Ɲɛda seko: 20 000

A maracogo: 60 000 ye ja talenw sɛbɛn

Switching output: 1 switching output, GPIO port wɛrɛw bɛ se ka kɛ ka kɛɲɛ ni mɔgɔw sago ye

Réseau interface: 1 RJ45 10M/100M adaptive Ethernet port, Gigabit rezo port min bɛ se ka ladilan

Wiegand interface: 1 Wiegand interface donna, 1 Wiegand interface bɔli

USB-yɔrɔ: USB-yɔrɔ 1 i n’a fɔ minɛn

Kumaɲɔgɔnya siratigɛ: 1 RS485 ɲɔgɔndan

Kamera: Kamera ɲɛ fila, yeelen yelen ani infrarouge kɛrɛfɛ, o bɛ farikolo ɲɛnamaw dɔnni dɛmɛ

Pixel nafamaw: Pixel nafama miliyɔn 2,1, 1920*1080

Yeelen hakɛ fitinin : kulɛri 0,01Lux @F1.2 (ICR); nɛrɛ ni nɛrɛ 0,001Lux @F1.2 (ICR) .

Siginiden ni mankan hakɛ: ≥50db (AGC OFF) .

Dinamique range belebele: 100db, ISP algorithm ɲɛda yɔrɔ dɔ jirali

Wideyo kodeli: H.265 Profil kunba kodeli/H.264 BP/MP/HP kodeli/MJPEG kodeli

Web page configuration: a bɛ dɛmɛ

Minɛn yɔrɔjan sɛgɛsɛgɛli: a bɛ dɛmɛ

Labɛncogo : a bɛ foroba rezow ni LAN baara dɛmɛ

Baarakɛyɔrɔ funteni: -30°C - +60℃

Baarakɛ nɛnɛ: 0~90% nɛnɛ hakɛ, nɛnɛ tɛ

Kɔgɔji fiyɛta hakɛ : Rp6 walima ka tɛmɛ o kan

Antistatique : contact ±6KV, fiɲɛ ±8KV

Kuranko: DC12V/2A

Yuruku-yuruku kɛlɛli hakɛ: IK06

Lakanali hakɛ: IP66

Minɛn fanga: 14.4W(MAX)

Minɛnw hakɛ : 128 (u bonya) * 28 (u janya) * 240 (janya) mm

Suguya

Aw bɛ farikolo ɲɛnamaw dɔnni dɛmɛ ni ɲɛkisɛ fila ye

A bɛ ɲɛda nɔfɛtaama ni mɔgɔw jirali dɛmɛ minnu bɛ taa kɔkanna yeelen barikamaw la

Ɲɛda dɔnni algorisimu kɛrɛnkɛrɛnnen, ɲɛda dɔnni tigitigi, ɲɛda dɔnni waati ka dɔgɔ ni 0,5s ye

 CPU min bɛ so kɔnɔ, o bɛ don a kɔnɔ

Ni baara kɛra ni LINUX baarakɛminɛn ye, o sitɛmu bɛ sabati

Boli waati kɔrɔ ye dɛsɛw ni ɲɔgɔn cɛ MTBF>50000h

A bɛ ɲɛda sumalen gafemarayɔrɔ 20 000 dɛmɛ ani dɔnni sɛbɛn 60 000

Interface protocoles nafamaw, minnu bɛ TCP/IP, UDP, HTTP, DNS, DHCP, MQTT protocoles dɛmɛ Windows/Linux ani plateforme wɛrɛw kɔnɔ · Baara funteni: -30°C-60℃

IP66 ji ni buguri tɛ don a la

 Sensɔrɔlan min bɛ yeelenbɔlan kɔnɔ, o bɛ fa yeelen fanga ladilan a yɛrɛma

Fɛnɲɛnɛmafagalanw (I/O, WG26, WG34, RJ45, RS485) .

7-inch IPS full-viewing HD display, a tɛ kɛ ni nɔgɔ ye walima ka mɛn jaw la
